AZE Over Ip 16 Port KVM Console KVM Switch Displayport 16 Port-RMCON1916i

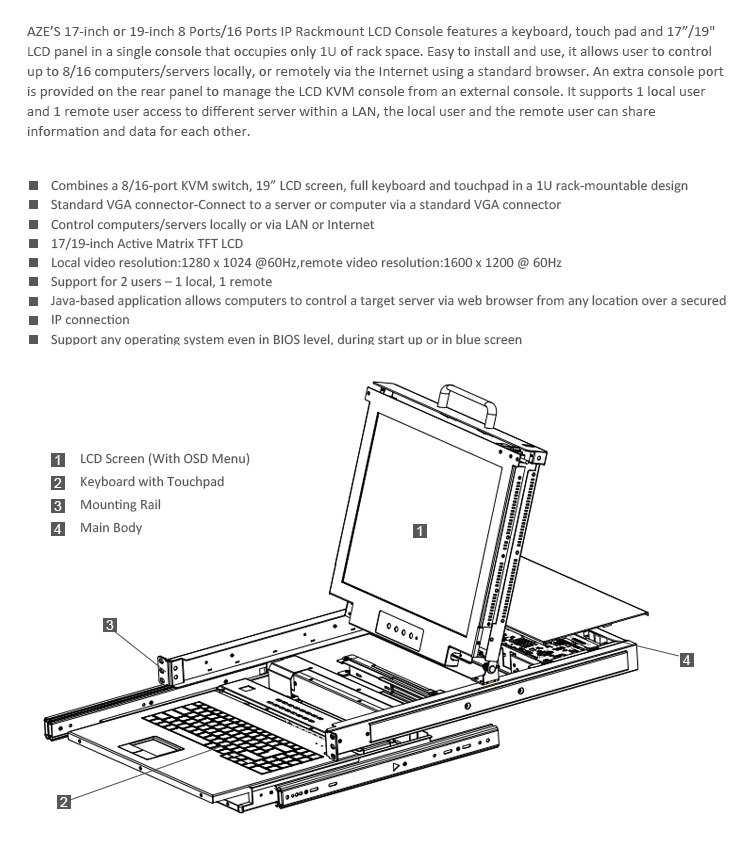

AZE's 17-inch/ 19-inch rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 17in./19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
- Control an entire network in just 1U of rack space,includes keyboard, 17"/19" LCD screen and touch pad
- Connects to a PS/2 or USB server or KVM switch
- Supports video resolutions up to 1280*1024
- Rackmountable in 19-inch system rack (1U)
- Control your server or KVM switch from a centralized rack console
- Reduce your server room clutter with a 1U rack-mount design
- Large 17in/19in screen allows you to run multiple applications at one time / Single Port KVM / Rackmount LCD / Rack console / Rackmount KVM console / VGA KVM / Rack mount console / Single port KVM console / Rack mount KVM / Rackmount console / KVM switch VGA / LCD with KVM / 1U KVM / 1U KVM console / Rack KVM console / VGA Rackmount KVM Console
- Intuitive system integration with direct support for a single server or KVM switch
|Number of Monitors Supported||1|
|Panel Type||Active Matrix TFT LCD|
|PC Video Type||VGA|
|Users||2 (1 local, 1 remote)|
|IP Remote Access||Yes|
|Port Control||Button, Hotkeys, OSD, Mouse|
|Color Depth||16.7M colors|
|Max Resolution||1280 x 1024|
|Pixel Pitch Support||0.294 x 0.294mm|
|Console Interface(s)||16 - VGA (15 pin)|
|Host Connectors||1 - VGA (15 pin)|
|Network port||1 - RJ45|
|Keyboard/Mouse Interfaces||2 - USB Type-A (4 pin)|
|Serial Port||DB9 (Male)|
|Input Voltage||100 - 240V AC|
|Humidity||0-80% RH, non condensing|
|Operating Temperature||0°C to 40°C (32°F to 104°F)|
|Storage Temperature||-20°C to 60°C (-4°F to 140°F)|
|Product weight||13.7kg (30 lb)|
|Product Dimension(WxDxH)||448mmx605mmx42.5mm/17.6 inx23.8 inx1.7 in|
|RMCON1708i||1U 17" Rackmount KVM Console with Integrated 8 Port IP KVM Switch|
|RMCON1716i||1U 17" Rackmount KVM Console with Integrated 16 Port IP KVM Switch|
|RMCON1908i||1U 19" Rackmount KVM Console with Integrated 8 Port IP KVM Switch|
|RMCON1916i||1U 19" Rackmount KVM Console with Integrated 16 Port IP KVM Switch|
Q1: Are you a manufacturer?
AZE: Yes, we are a experienced manufacturer- professional customer support team, experienced R & D team and effiency production lines.
Q2: Do you have any MOQ limit for rack kvm switch or kvm console ?
AZE: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
AZE: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize products based on requirements?
AZE: Yes, we can provide OEM & ODM services.
Q5: How long is the product warranty ?
AZE: We guarantee all our products 12 months warranty without artificial damage
Q6: How do you ship the goods and how long it will take?
AZE: We will use UPS, FedEx, DHL or air freight for sample order, it will arrived within 7-14 days.
For the bulk order with container sea shippment , it takes approx 30-35 days to arrived at the customer side.
Q7: Can i visit your factory?
AZE: Welcome to visit us, please talk with your account manager to arrange your schedule.
Q8: What is your payment terms?
AZE: 50% T/T in advance, 50% against B/L copy.
